Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing

Package : wooden case

Brand Name : Heling Machine

Certification : 10221508

Place of Origin : CHINA

MOQ : 1pcs

Price : Welcome to Inquire

Payment Terms : T/T

Supply Ability : 80+SET+PER month

Delivery Time : 30-40 Work days

Packaging Details : wooden box

Name : Thread Forming Machine

Usage : Efficient Automation Fully automatic continuous operation, integrating multiple processes such as straightening, cutting, forming, and thread rolling, significantly improving production efficiency and reducing labor costs. Precision and Reliability Adoptin

Core components : Bearing, motor, pump

Warranty : 1 Year

Color : Customizable

Model Number : M14-200

Core selling points : Easy to operate, long service life, high productivity, patented product, automatic, multi-functional, high precision

After-sales service provided : Online support,Video technical support

Voltage : 380V/440V/415V,50HZ/60HZ

Contact Now

Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing


Key Features
3-in-1 Integrated Design combines straightening, cutting and thread forming into one single process, eliminating redundant production steps.
Intelligent CNC Control System supports precise parameter setting and real-time production data monitoring.
Automatic Material Feeding System ensures consistent feeding speed and reduces manual material handling.
High-Precision Straightening Rollers guarantee material straightness with a tolerance of ±0.05mm.
Technical Specifications
Model

Max.Thread Diamete

(mm)

Max.U-Bolt Blank Length

(mm)

Main Motor(KW)

Straighten The Motor(KW)

Weight

(KG)

Capacity

(PCS/mm)

Volume(L*W*H)(m)
M5-60 5 60 4 1.5 950 45-70 1.5*0.9*1.5
M6-70 6 70 5.5 2.2 1100 45-70 1.65*1*1.6
M6-200 6 200 5.5 2.2 1850 45-60 1.65*1*1.6
M8-80 8 80 7.5 3 1800 45-70 2.3*1.5*1.86
M8-150 8 150 11 3 1850 45-70 2.5*1.5*1.95
M8-300 8 300 11 3 2200 45-60 2.5*1.5*1.95
M10-130 10 130 11 3 1900 45-70 2.55*1.5*1.95
M10-220 10 220 11 3 2300 45-70 2.55*1.5*1.95

M10-400

 10 400 11 3 2650 45-55 2.65*1.5*1.95

M10-500

 10 500 11 3 3100 35-55 2.75*1.5*1.95

M10-620

 10 620 11 3 3300 35-55 2.8*1.5*1.95

M12-160

 12 160 18.5 4 2700 40-60 2.8*1.5*2.25

M12-200

 12 200 18.5 4 2800 40-60 2.8*1.5*2.25

M12-300

 12 300 18.5 4 3300 40-60 2.9*1.5*2.25

M12-400

 12 400 18.5 4 3800 40-55 3.0*1.5*2.25

M12-500

 12 500 18.5 4 4300 35-45 3.2*1.5*2.35

M12-600

 12 600 18.5 4 4600 35-45 3.3*1.5*2.35

M14-200

 14 200 22 5.5 3850 45-60 2.9*1.5*2.4

M14-400

 14 400 22 5.5 4500 40-55 3.1*1.5*2.4

M14-500

 14 500 22 5.5 4700 35-45 3.2*1.5*2.4

M14-600

 14 600 22 5.5 5300 35-45 3.4*1.5*2.4

M16-200

 16 200 30 7.5 5700 40-50 3.2*1.95*2.65

M16-300

 16 300 30 7.5 6000 40-50 3.2*1.95*2.65

M16-400

 16 400 30 7.5 6300 35-45 3.2*1.95*2.65

M16-500

 16 500 37 7.5 6900 30-40 3.4*1.95*2.65

M20-400

 20 400 45 11 10000 35-45 3.5*2.05*3.2

M20-600

 20 600 45 11 11000 30-40 3.7*2.05*3.2

M24-600

 24 600 45 11 12000 30-40 3.8*2.2*3.2
Product Gallery
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Key AAutomatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener ManufacturingAutomatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
vantages
Reduces production process steps by 40% with integrated straightening, cutting and thread forming, shortening overall production cycles.

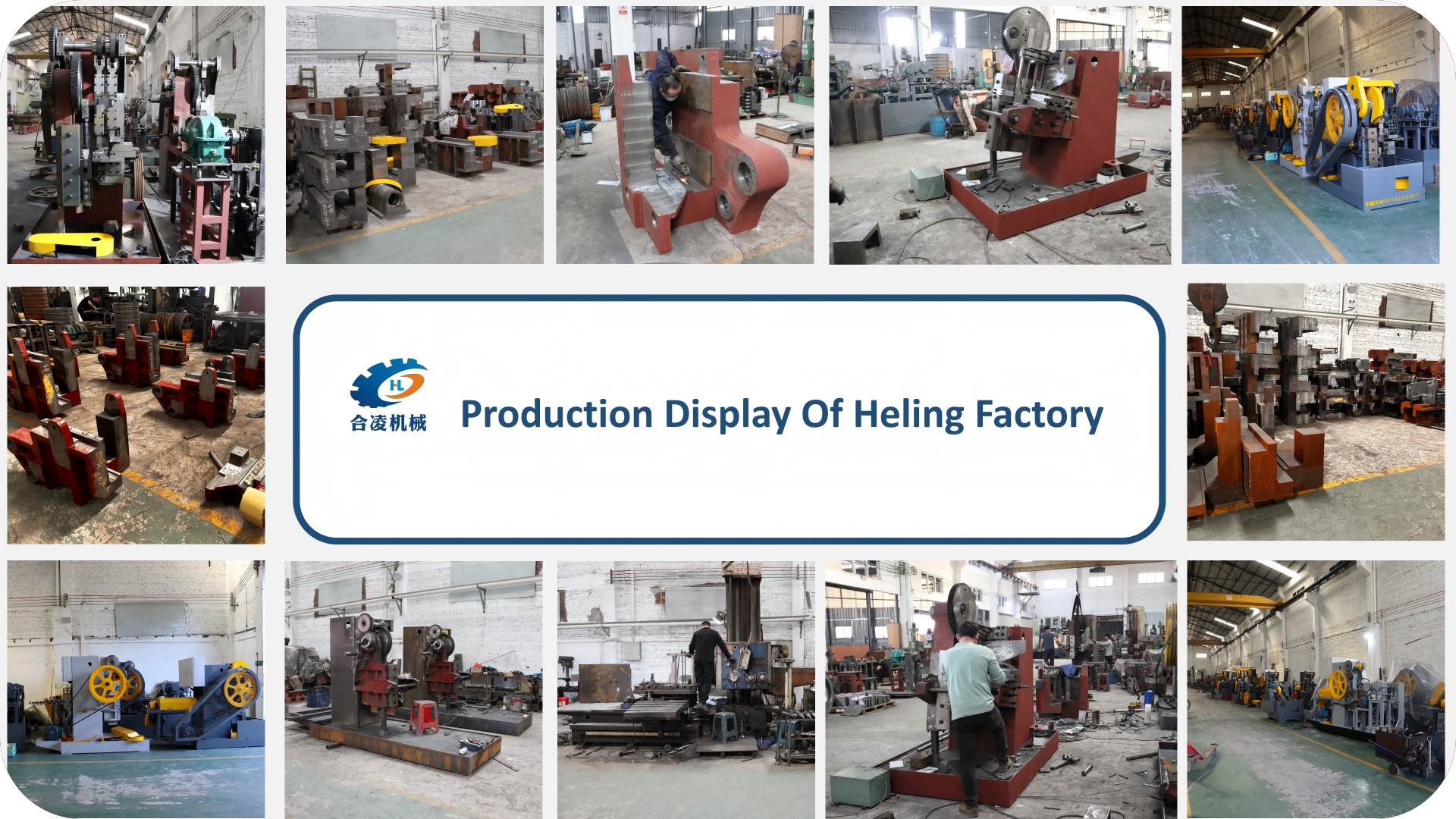

Factory & Exhibition ShowcaseAutomatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
Automatic Straightening Cutting Thread Forming Machine: All-in-One Solution for Fastener Manufacturing
